Toyota Prado 2018 - 2023 Upgraded Reverse Camera

Photos shown are from a 2014 model, product is virtually the same in 2018-2023 models.

Fully PLUG AND PLAY upgraded reverse camera for Toyota Prado 150 series - suitable for the following models:



2018-2023 GX / GXL with SPARE WHEEL ON TAILGATE

Does not suit the flat tailgate models and/or models with the factory 360 camera system.

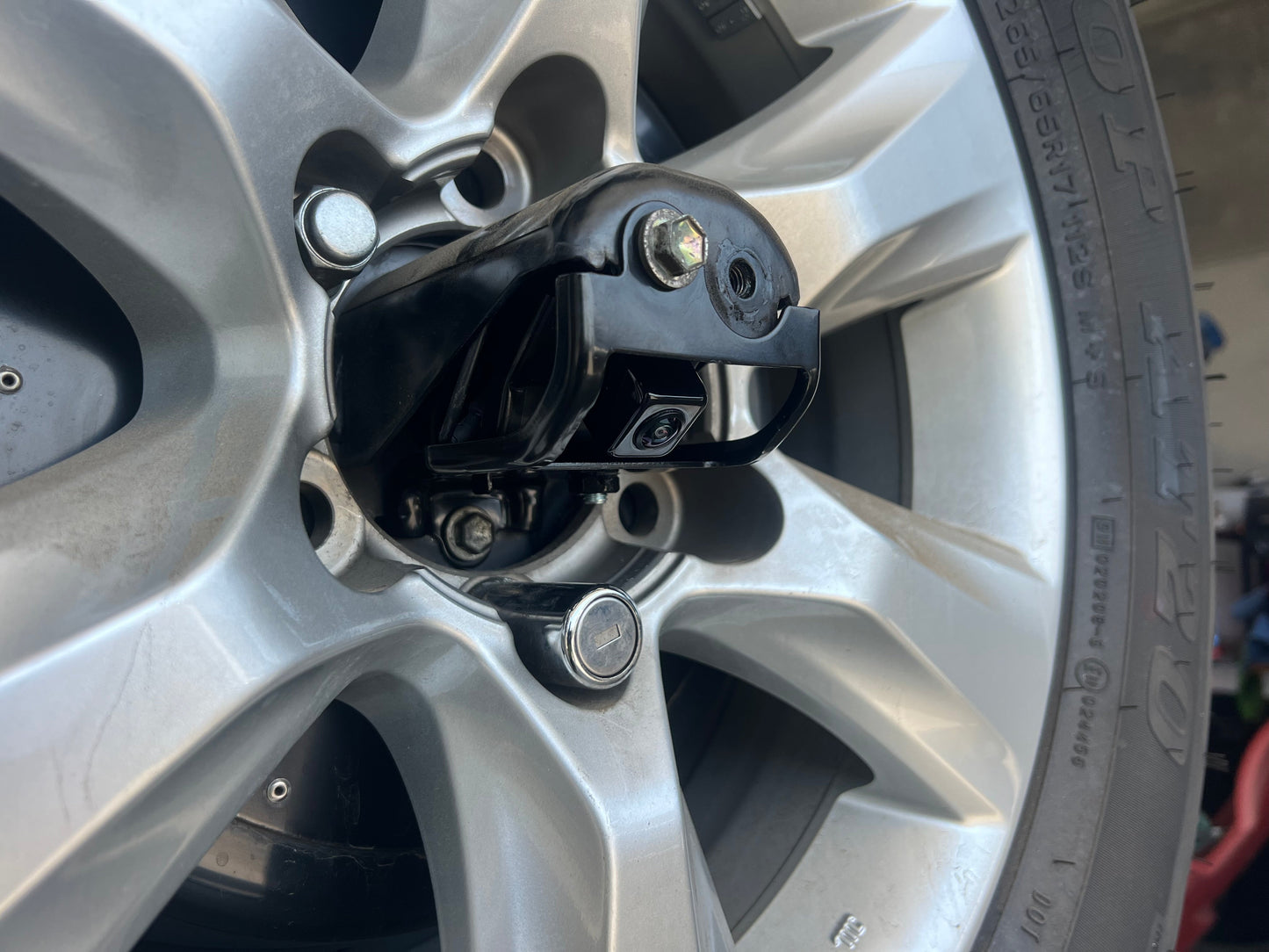

Supplied with new metal bracket and factory style connector - no need to run new cables or cut any wiring. ~15 minute installation!

Designed to replace a factory fitted reverse camera only! Does not include a new harness as it uses the existing one.

(NOTE: New camera has slightly different connector to the factory version, but it will still match up and connect fine)

Available in 2 options:

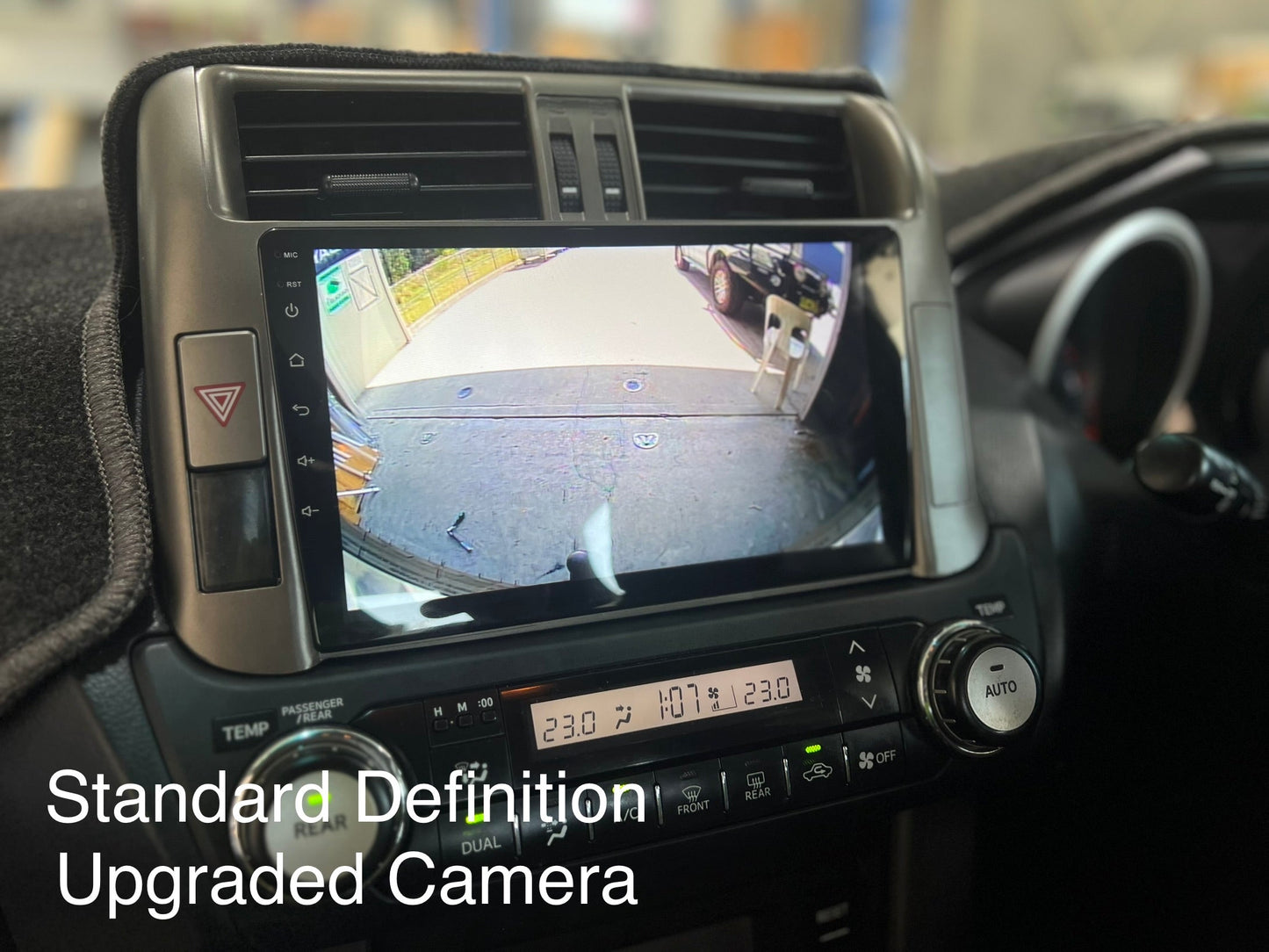

Standard Definition

Suitable for the factory Toyota system and most aftermarket stereo systems.

Specifications:

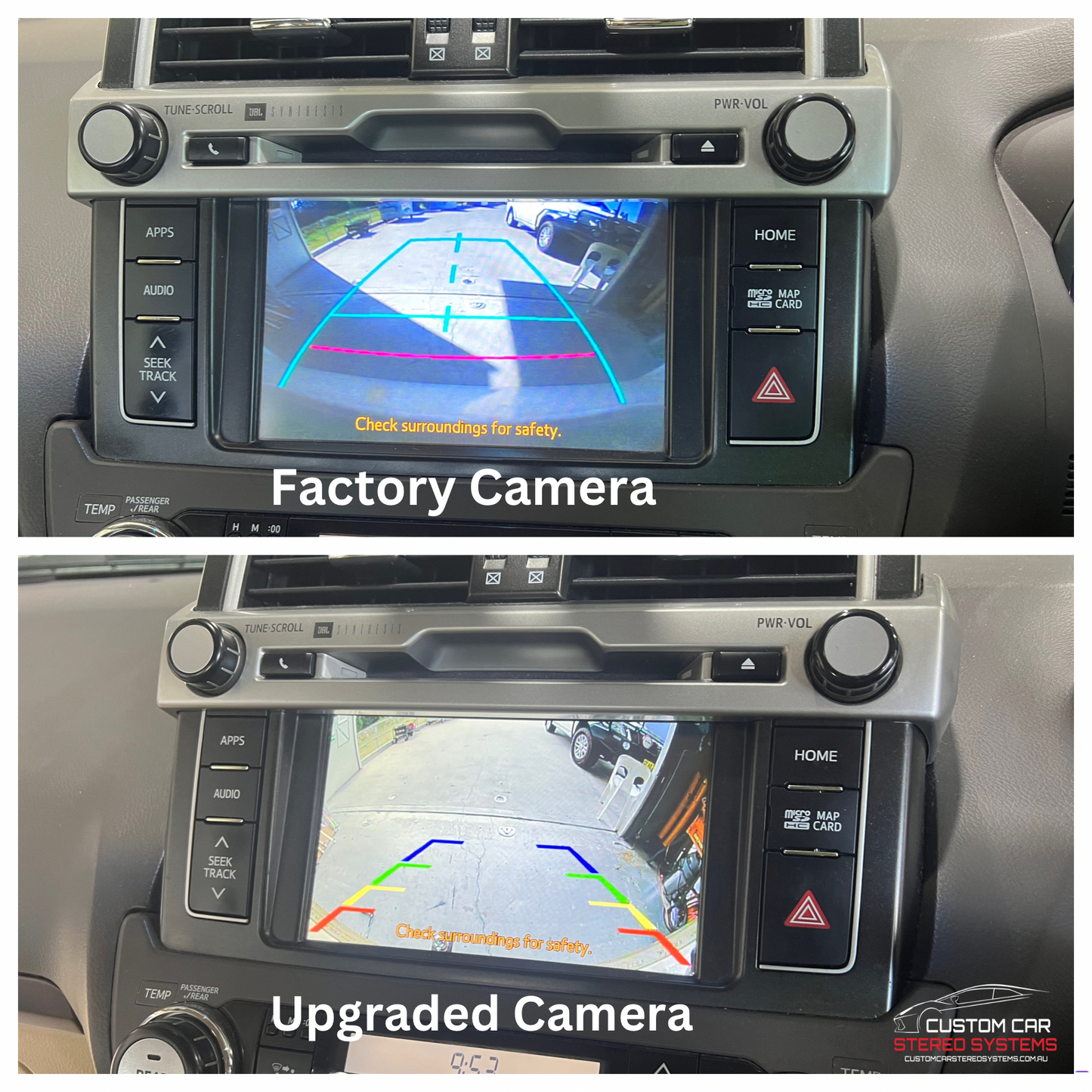

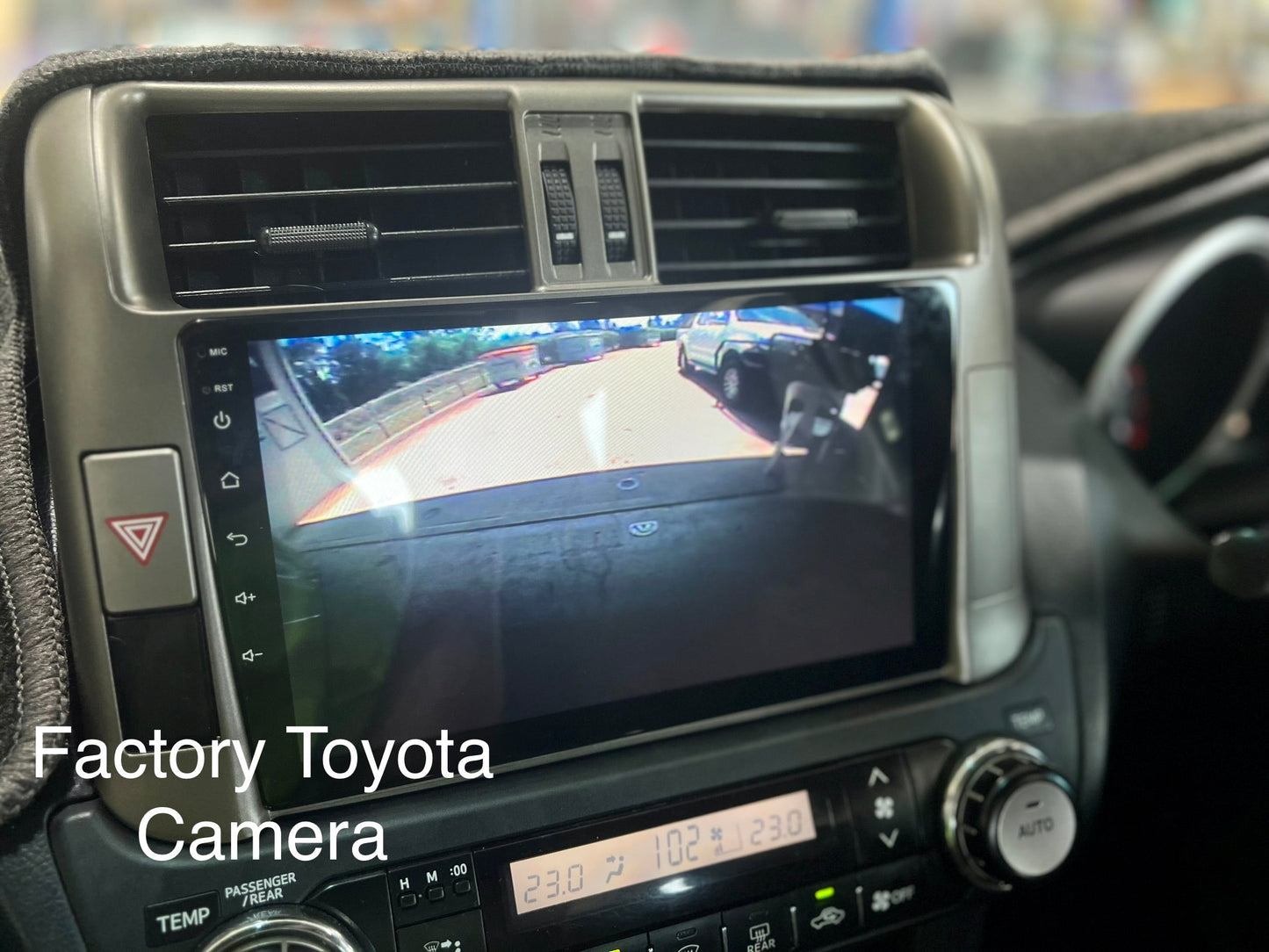

Resolution: 480p (standard camera is 240p)

Viewing Angle: 140 degrees (standard camera is 110 degrees)

Video format: NTSC

Minimum Lux: 0.1

Voltage: 6.0v (matches factory camera voltage)

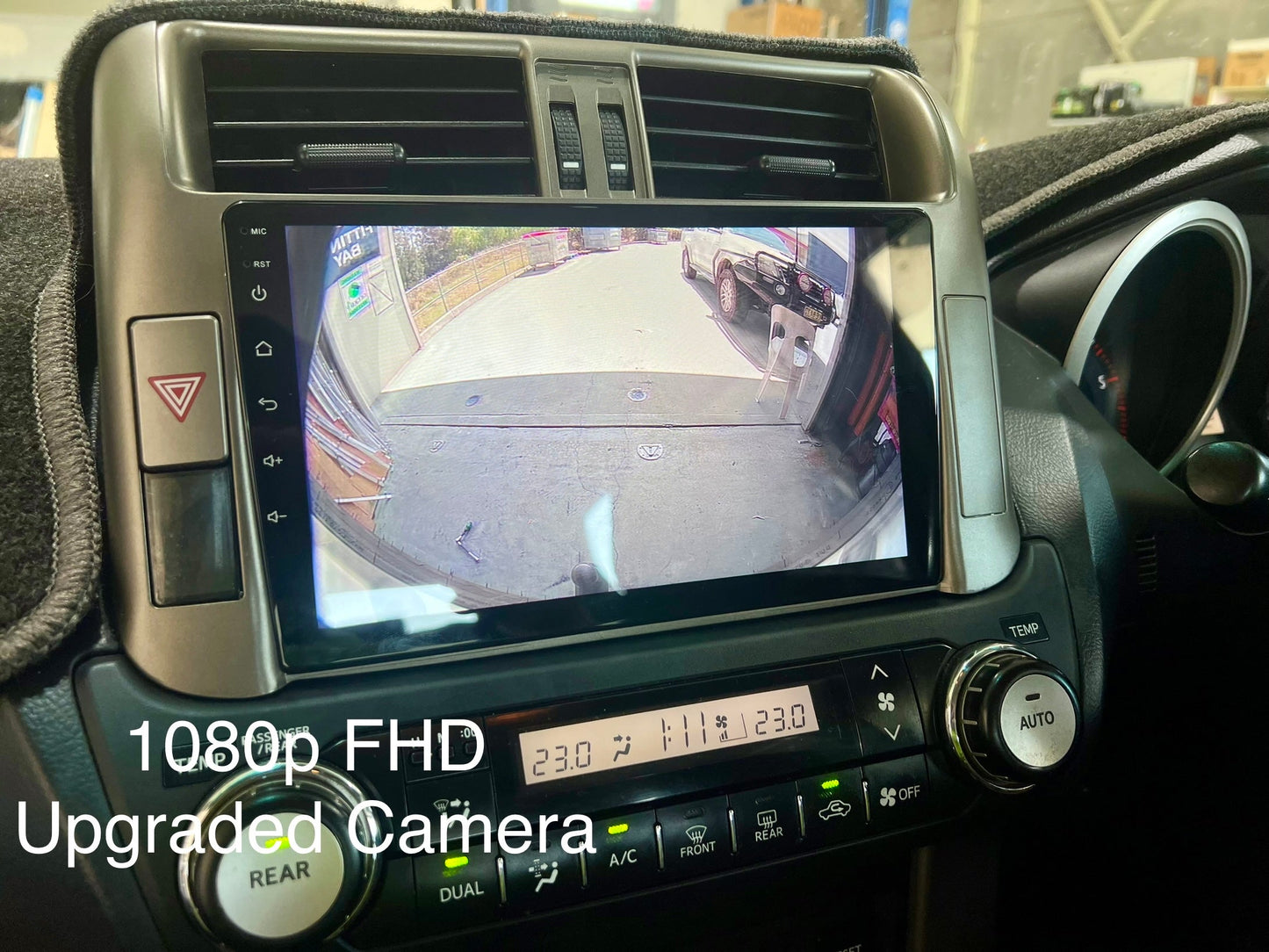

Full High Definition (FHD 1080p)

Suitable for most Android-based replacement units (including our units) with 9.0” / 10.1” screens (please check with your units manufacturer before ordering - the unit needs to support AHD1080p 30hz / 30fps).

OUR HD VERSION DOES NOT SUIT THE FACTORY STEREO SYSTEM OR MOST “BRAND NAME” AFTERMARKET UNITS (this includes Kenwood, Pioneer, Alpine, Sony etc). Please choose our standard definition version - this is still a great upgrade for these units.

Specifications:

Resolution: 1080 FHD @ 30fps

Viewing Angle: 170 degrees ultra wide angle

Video format: AHD1080p 30fps

Minimum Lux: 0.1

Voltage: 6.0v (matches factory camera voltage)



NOTE: To see the tow ball, you will need to remove the spare wheel cover (if fitted) or purchase an extended hitch.



Both models come with 12 months warranty as standard.
